Pediatric examination tables
Indispensable in every pediatrician's practice, the basis of every examination or treatment.
Children's examination tables for the pediatrician's office
The pediatric examination tables were specially designed for the treatment of small children. Thanks to the headboard and footboard, which can be continuously adjusted positively and negatively or folded down, the length of the table can be adjusted to the respective body sizes of babies and children and thus also offers an additional safety component if necessary.
The children's examination tables from AGA Sanitätsartikel are available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths (650 mm and 800 mm).
To better accomodate the various body sizes of the users, the children's tables are available in four different heights at no extra charge: 650 mm, 700 mm, 750 mm and 800 mm. If no table height is specified when placing the order, they will be delivered at a height of 650 mm.
Features
- The children's examination tables are available in two widths:
- Width 650 mm, Article No.: KU-1065, KU-2065 and KU-3065,
- Width 800 mm, Article No.: KU-1080, KU-2080 and KU-3080.
- The stability and robustness is achieved by the gusset plates in the frame corners and the cross braces between the table legs.
- The tubular steel frames are made of:
- Lacquered blank steel, Article No.: KU-1065 and KU-1080,
- Chrome-plated blank steel, Article No.: KU-2065 and KU-2080,
- Stainless steel, Article No.: KU-3065 and KU-3080.
- The legs of the table are equipped with floor protectors (caps) at the end.
- The thickness of the three upholstery segments (head part, middle part and foot part) is each 64 mm.
- If no height dimension is specified when placing the order, the pediatric tables will be delivered at a height of 650 mm (also available in heights of 700, 750 and 800 mm at no extra charge).
- The headboards and footboards can be adjusted continuously from +30° to -90° and secured by clamping handles using a clamping rod mechanism.
- The children's tables whose article numbers end with '/LR' includes a set of castors consisting of four swivel castors, Ø 75 mm, two of which can be completely locked in rotation and running direction.
Technical data
| Table width 650 mm | ||||
|---|---|---|---|---|
Article number | KU-1065 | KU-2065 | KU-3065 | |
| Frame | Lacquered | Chrome | Stainless steel | |
| Length Head/middle/foot sections | 1,900 mm | |||
Width | 650 mm | |||
| Heights (no extra charge) | 650 / 700 / 750 / 800 mm | |||
Upholstery segments | 3 sections | |||
| Upholstery thickness | 64 mm | |||
Head section adjustment | -90°/+30° (clamping rods) | |||
Foot section adjustment | -90°/+30° (clamping rods) | |||
Load capacity | 80 kg | |||
With castors, Ø 75 mm | KU-1065/LR | KU-2065/LR | KU-3065/LR | |
| Table width 800 mm | |||
|---|---|---|---|
Article number | KU-1080 | KU-2080 | KU-3080 |
| Frame | Lacquered | Chrome | Stainless steel |
| Length Head/middle/foot sections | 1,900 mm 500 / 900 / 500 mm | ||
Width | 800 mm | ||
| Heights (no extra charge) | 650 / 700 / 750 / 800 mm | ||
Upholstery segments | 3 sections | ||
| Upholstery thickness | 64 mm | ||
Head section adjustment | -90°/+30° (clamping rods) | ||
Foot section adjustment | -90°/+30° (clamping rods) | ||
Load capacity | 80 kg | ||
| With castors Ø 75 mm | KU-1080/LR | KU-2080/LR | KU-3080/LR |
The standard configuration includes:
- Table legs with floor protectors (impact caps).
- A set of castors for the children's tables whose article numbers end with '/LR', consisting of four swivel castors, Ø 75 mm, two of which can be completely locked in rotation and running direction.
We offer the coloured lacquer coating of the frames as standard in the following three shades (see frame colour selection card):
- light grey (RAL 7035)
- white aluminum (RAL 9006)
- pure white (RAL 9010).
The high quality finish has a glossy look. It is disinfectant resistant and easy to clean.
Other colours are of course also available. Please let us know the desired RAL colour so that we can find out the corresponding additional costs. Please note, however, that these products are then considered type variants with no right of return.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we offer you the service of manufacturing the upholstery in other colours or from other synthetic leather manufacturers (type variant). After prior agreement, please send us the relevant references.
The black electrically conductive synthetic leather cover (with equipotential bonding socket on the frame) is available at an additional cost. It is already included in the price of the operating tables and multifunction tables.
Downloads
Image galleries
KU-2065
KU-2065
KU-2065
KU-2065
The photos show the pediatric examination table, Article No.: KU-2065, in the colours:
- Frame: chrome,
- Upholstery: blue.
KU-1065/LR
KU-1065/LR
KU-1065/LR
KU-1065/LR
KU-1065/LR
KU-1065/LR
KU-1065/LR
KU-1065/LR
KU-1065/LR

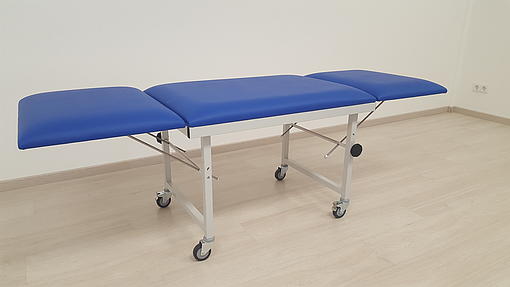

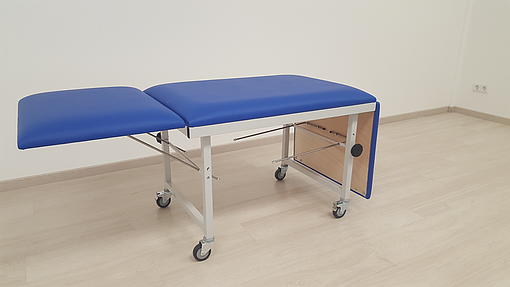

The photos show the pediatric examination table, Article No.: KU-1065/LR, in the colours:
- Frame: light grey RAL 7035,
- Upholstery: atoll.
Accessories & additional options
Article No. | Description |
|---|---|
HRM-14 | Semi-circular roll, foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours. |
HRM-14/Klett | Semi-circular roll with Velcro fastener (hook and loop straps), foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours. |
| KKM-16 | Head wedge, foam filling, dimensions 450 x 400 x 80 / 10 mm (L x W x H), sewn from synthetic leather, with zipper, see upholstery colours. |
| NF-30 | Levelling feet, for square steel tube 30 x 30 mm, set (4 pieces) impact caps with levelling feet. |
| PU-6000 PE-8000 | Paper roll holder, for table width 650 mm. Paper roll holder, for table width 800 mm. Chrome-plated, consisting of two brackets and a paper roll holder bar (length 615 / 795 mm, Ø 20 x 1 mm), for mounting (from below) on the upholstery frame, or for wall mounting. |
RLM-20 | Knee roll, dimensions Ø 180 x 560 mm. Neck roll, dimensions Ø 140 x 400 mm. Round roll, foam filling, sewn from synthetic leather, with zipper, see upholstery colours. |
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
KU-1065, 2 sections
KU-1065, 2 sections
KU-1065, 2 sections
KU-1065, 2 sections
KU-1065, 2 sections
KU-1065, 2 sections
KU-1065, 2 sections

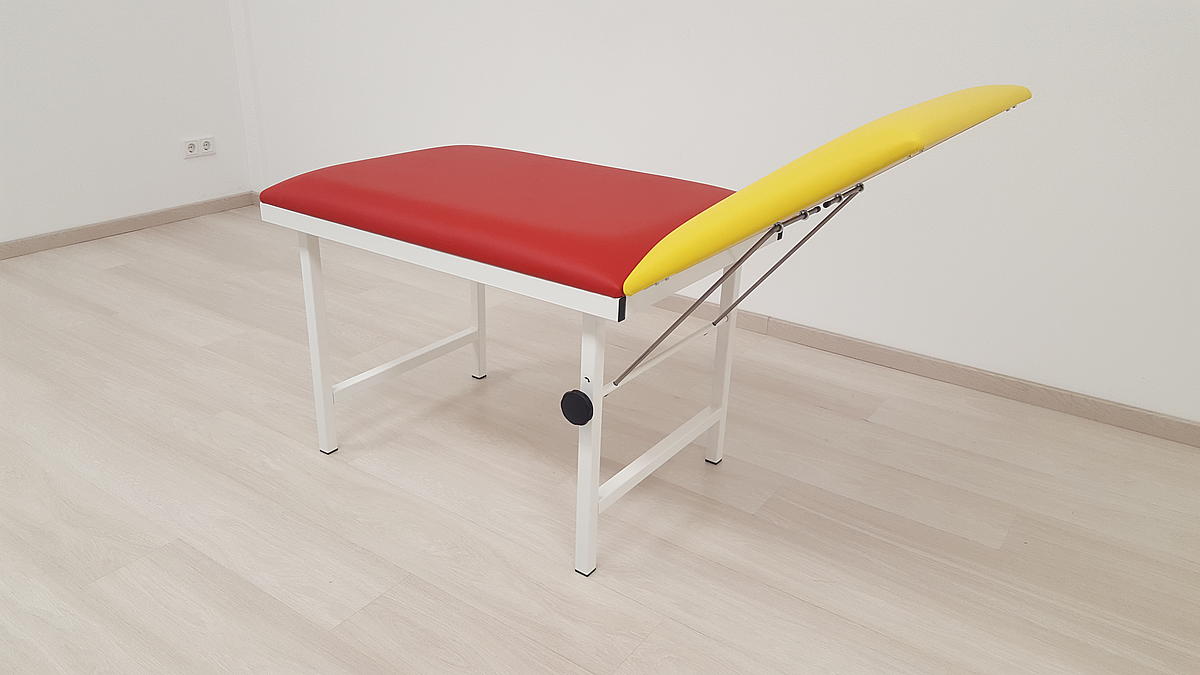

The photos show the pediatric examination table, Article No.: KU-1065, with a two-piece tabletop, in the colours:
- Frame: pure white RAL 9010,
- Upholstery: yellow (headrest) and red (main surface).
KU-1080/LR, LR-125
KU-1080/LR, LR-125
KU-1080/LR, LR-125
KU-1080/LR, LR-125
The photos show the pediatric examination table, Article No.: KU-1080/LR, in the colours:
- Frame: pure white RAL 9010,
- Upholstery: baltic
as well as the additional accessories and equipment components:
- Set of castors, Ø 125 mm, Article No.: LR-125, for a table height of 800 mm.
KU-1065, 1 section
KU-1065, 1 section
KU-1065, 1 section
KU-1065, 1 section
KU-1065, 1 section
The photos show the pediatric examination table, Article No.: KU-1065, with a continuous tabletop in one piece and a height of 800 mm, in the colours:
- Frame: white aluminium RAL 9006,
- Upholstery: red.
Questions? Contact us today!
Do you have questions about our products or services? Would like to get to know us? Contact us today, we will be pleased to provide expert advice tailored to your needs.
Product videos
Illustration and operation of the continuous headrest adjustment by clamping rod mechanism, Article No.: EKA-1065/AA.
