MRI Instrument table
The instrument table for magnetic resonance imaging (MRI, also known as MR for short) has special frame properties to avoid being attracted by the strong magnetic field of the MR systems and influencing the imaging process.
MRI Instrument table for MR systems up to 3 Tesla
This MRI-compatible instrument table from AGA Sanitätsartikel is also characterized by its high-quality materials and workmanship. The frame consists largely of anodized aluminium profiles that are not attracted by the strong magnetic field of the MR system or affect the imaging process. Thanks to the double castors, the instrument table can be moved and is not limited in terms of space. It can be used wherever it is needed.
The MRI-compatible instrument table from AGA Sanitätsartikel is equipped with two shelves with a height of 340 mm and 930 mm respectively. The four double castors, two of which can be locked, have smooth driving and rolling properties.
The MR-Conditional instrument table is suitable for MR systems up to and including 3 Tesla and can be used safely under the following conditions:
Static magnetic field of maximum 3 Tesla or less,
With an additional spatial gradient of no more than 8.6 T/m or less,
The MRI instrument table must not exceed the limit line of 8.6 T/m in the sliding direction towards the magnet.
Features
- The frame construction of the MRI instrument table consists of aluminium square tube profiles and aluminium hollow chamber profiles with anodized surface (E6/EV1).
- The two aluminium shelves, internal dimensions approx. 590 x 390 mm, thickness 2 mm, placed at the heights of 340 mm and 930 mm respectively, each have a maximium load capacity of 20 kg.
- The four double castors (castors Ø 75 mm), two of which have brakes, guarantee the mobility of the MRT-compatible instrument table / trolley.
Technical data
| MRI Instrument table | ||
|---|---|---|
| Article number | MR-IT | |
| Frame | Anodized aluminium | |
| Width | 650 mm | |
| Depth | 450 mm | |
| Height | 955 mm | |
| Heights of shelves | 340 mm and 930 mm | |
| Load capacity | 20 kg (each shelf) | |
The standard configuration includes:
- A set of castors, 2 of which have brakes.
The artificial leather covers we use are characterized by their tear resistance, durability, longevity and their good cleaning properties as well as their resistance to disinfectants.
We use a (colour) selection from the synthetic leather covers VOWAled Pisa (Vowalon). The colour selection card can be found here.
In addition, we can also use imitation leather upholstery covers from other manufacturers (e.g. Skai and Stamskin Top). Please let us know the desired manufacturer, the collection and the exact colour number. We will let you know the corresponding additional costs.
Please note that products with electrically conductive and third-party covers are type variants and therefore without a right of return.
Downloads
pdf | 2 MB
Image gallery
MR-IT

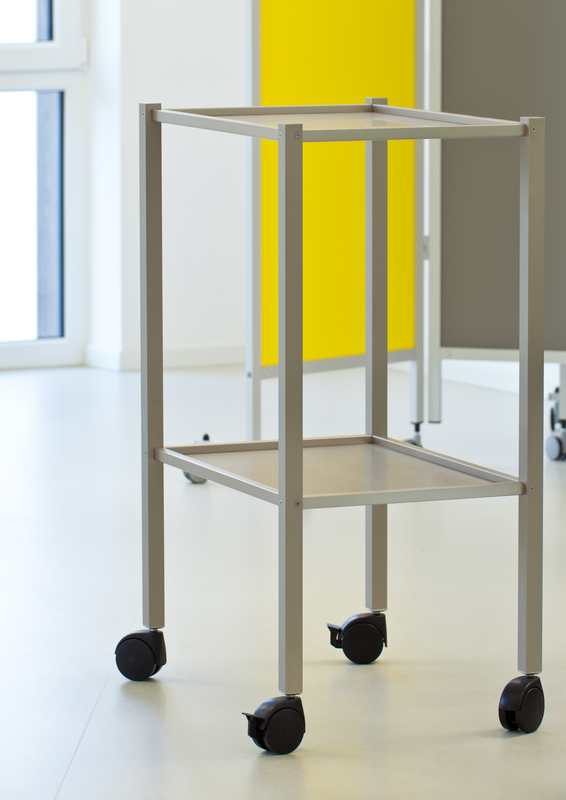

The picture shows the MRI instrument table, Article No.: MR-IT, in the colour:
- Frame: anodized aluminium.
Accessories & additional options
Article No. | Description |
|---|---|
| PAL-60 | Upholstered foam pad, dimensions 600 x 400 mm, thickness 40 mm, upholstered with synthetic leather (see Upholstery colours), with foam filling. |
Product variants
As a manufacturer, we are able to adapt our products to your individual needs. Below, you will find examples of customer-specific requests we have implemented.
Due to the specific requirements for the field magnetic resonance, we only manufacture and deliver the MRI instrument table in the version presented above.
